Piezo element 30mm Piezo Ceramic Brass Buzzer Sheet Ultra-thick copper sheet 0.66mm with cable

Product Categories

Waterproof Ultrasonic Transducer [48]
Ultrasonic Piezo Transducer [25]
Ultrasonic Flow Transducer [50]
Ultrasonic Gas Flow Sensor [30]
Ultrasonic Transducer Sensor [32]
Ceramic Pressure Sensor [39]
High Frequency Transducers [19]
Piezo Ceramic Disc [46]
Ultrasonic Atomizing Transducer [63]
Electronic Alarm Buzzer [79]
Ultrasonic Transducer Speaker [20]
Temperature And Humidity Sensor [3]
Ultrasonic Sensor Module [23]
Ultrasonic Level Sensor [11]
Underwater Ultrasonic Sensor [10]

TaiMi(Shenzhen) electronics technology Co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Piezo element 30mm Piezo Ceramic Brass Buzzer Sheet Ultra-thick copper sheet 0.66mm with cable

Name: Piezo element 30mm Piezo Ceramic Brass Buzzer Sheet Ultrathick copper sheet 066mm with cable
Brand: TAIMI
Price: 1 USD

Piezo element 30mm Piezo Ceramic Brass Buzzer Sheet Ultra-thick copper sheet 0.66mm with cable Manufactures

Brand Name : TAIMI

Model Number : TM-A30T-4A1W60 Piezo element

Certification : ISO9001、ISO14001、IATF16949

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 10~15days

Packaging Details : safe packaging

Material : Brass

Resonance Frequency (KHz) : 4khz±0.6 Piezo element

Max Input Voltage (Vp-p) : 30vp-p Max

Resonant Impedance (Ω) : 200 max

Capacitance at 120Hz (nF) : 50±30%

Ceramic plate diameter (mm) : 25mm

Dimension/Thickness : 30*0.66mm

Operating temperature : -20℃ to 70℃

Samples : can support

Warrenty : 3 years

Contact Now

Piezo element 30mm Piezo Ceramic Brass Buzzer Sheet Ultra-thick copper sheet 0.66mm with cable

Piezo element Electrical Characteristics
Part No:TM-A30T-4A1W60
1	Resonance Frequency (KHz)	4±0.6
2	Max Input Voltage (Vp-p)	30 max
3	Resonant Impedance (Ω)	200 max
4	Capacitance at 120Hz (nF)	50±30%
5	Operating Temperature (℃)	-20～+70
6	Storage Temperature (℃)	-30～+80
7	Ceramic plate diameter “d”(mm)	Φ25±0.5
8	Metal plate diameter “D”(mm)	Φ30±0. 1
9	Metal plate Thickness “t”(mm)	0.5±0.05
10	Total Thickness “T”(mm)	0.66±0.1
11	Metal Material	brass

DIMENSIONS (UNIT: mm) ±0.5mm Tolerance: ±0.5mm Except Specified

FAQ

1. Q: When can we get the reply?

Any inquiries will be replied within 24 hours.

2. Q: Can i have samples?

A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.

3. Q: What about minimum order quantity?

A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.

4. Q: What about delivery time?

A: We will send sample to you within 3 days.

Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.

5. Q: What about terms of payment?

A: Payment terms: T/T, west Union, Paypal and L/C etc.

6. Q: How you will send the goods to us?

A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.

7. Q: Are you trading company or manufacturer ?

A: We are in China buzzer manufactory

8. Q: Do you support OEM and ODM services?

A: Yes, surely support. we can customize products according to the drawing.

9. Q: Can you provide driven circuit?

A: Yes, of course sure.

10. Q: Can you solve technical problems for us?

A: Yes, Our Technical team will try our best to support you.

Please connect us to get more details:

Email:sales88@taimihk.com

Mobil/WhatsApp:+86 13538467125

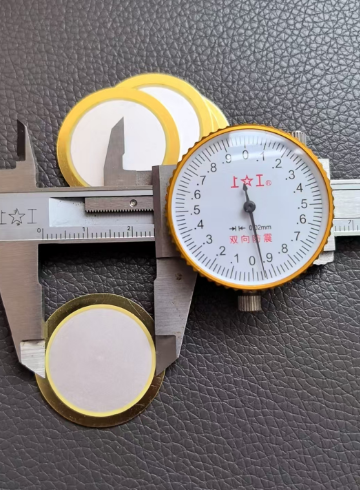

Piezo element 30mm Piezo Ceramic Brass Buzzer Sheet Ultra-thick copper sheet 0.66mm with cable Images
