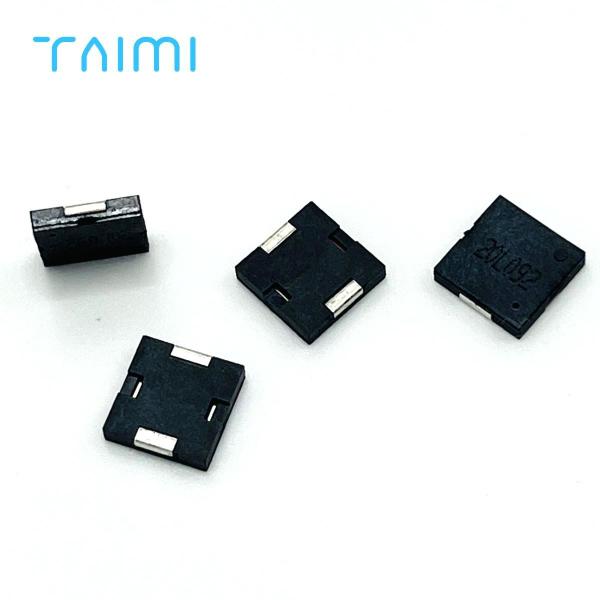

5V Square SMD Piezo Buzzer 5mA Max Ultra Thin Passive Buzzer

Brand Name : TAIMI

Model Number : TM-SMD121203 PIEZO SMD BUZZER square ultra-thin passive buzzer

Certification : ISO9001、ISO14001、IATF16949,ROHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 10~15days

Packaging Details : safe packaging

Type : TM-SMD121203 square ultra-thin passive buzzer

Material : LCP SMD piezo buzzer 12*12

Operating voltage : 3V SMD PIEZO Square buzzer

Color : black

Weight : 3g

Operating temperature : -40℃ to 85℃

Rated current : 5mA Max square ultra-thin passive buzzer

Sound output : Min.85 dB

Rohs : Yes

Function : SMD PIEZO TOP SOUNDS BUZZER

Max Input Voltage (Vp-p) : 25

Contact Now

SMD1203 Piezoelectric patch Peak buzzer 5v square ultra-thin passive buzzer

5V Square SMD Piezo Buzzer 5mA Max Ultra Thin Passive Buzzer

1. Specification

1

Rated Voltage (Vp-p)

3

2

Resonance Frequency (KHz)

4.0±0.5

3

Max Input Voltage (Vp-p)

25

4

Capacitance at 120Hz (pF)

16000±30%

5

*Sound Output at 10cm (dB)

≥75

6

Operating Temperature (℃)

-40~+85

7

Storage Temperature (℃)

-40~+85

8

*Rated Current (mA)

≤3

9

Weight (g)

0.3

10

Housing Material

LCP

11

MSL(Moisture Sensitivity Level)

5a(≤30℃/60%RH 24H Floor life)

12

RoHS

Yes

2. Dimensions

5V Square SMD Piezo Buzzer 5mA Max Ultra Thin Passive Buzzer

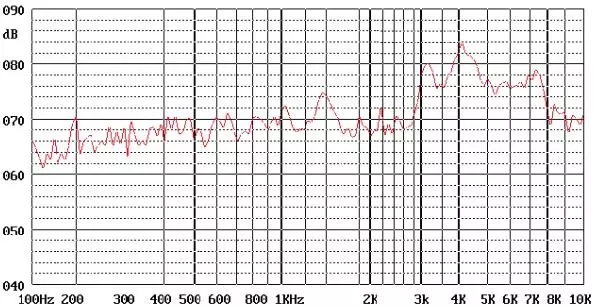

3. Frequency Curve:

5V Square SMD Piezo Buzzer 5mA Max Ultra Thin Passive Buzzer

Application:

5V Square SMD Piezo Buzzer 5mA Max Ultra Thin Passive Buzzer

5V Square SMD Piezo Buzzer 5mA Max Ultra Thin Passive Buzzer

Buzzer is generally used in intelligent wearable equipment, anti-theft system, medical equipment, industrial production, etc.

F&A:

1. Q: When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Q: Can i have samples?
A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
3. Q: What about minimum order quantity?
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. Q: What about delivery time?
A: We will send sample to you within 3 days.
Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.
5. Q: What about terms of payment?
A: Payment terms: T/T, west Union, Paypal and L/C etc.
6. Q: How you will send the goods to us?
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Q: Are you trading company or manufacturer ?
A: We are in China buzzer manufactory
8. Q: Do you support OEM and ODM services?
A: Yes, surely support. we can customize products according to the drawing.
9. Q: Can you provide driven circuit?
A: Yes, of course sure.
10. Q: Can you solve technical problems for us?
A: Yes, Our Technical team will try our best to support you.
