DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

TaiMi(Shenzhen) electronics technology Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

Brand Name : TAIMI

Model Number : TM-12095 3V 5V 9V 12V magnetic buzzer

Certification : ISO9001、ISO14001、IATF16949

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 10~15days

Packaging Details : safe packaging

Rated voltage (vp-p) : DC9V-24V

Function : Alarm sound buzzer

Min Sound Output : 90dB

Type : Electromagnetic buzzer

Weight : 12g

Rated Current : 12mA(MAX)

Resonant Frequency : 2800±500Hz

Operating temperature : -20°C to +60°C

Storage temperature : -30 ° C to +70 ° C

Material : ABS

Color : Black

Sound Output : >90dB

Size : 23x12mm

Contact Now

High Decibels Continuous Sounder DC 9-24V 90dB with Lead Wire Active Piezo Electronic Alarm Buzzer

Electronic Alarm Buzzer Specifications:

Rated Voltage (VDC) 12
*Rated Current (mA) ≤12
*Sound Output at 30cm (dB) ≥100
*Resonance Frequency (KHz) 2.8±0.5
Tone Continuous
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -30~+80
Weight (g) 12
Housing Material ABS
RoHS Yes
Quantity (pcs) 1000
Gross Weight (kg) 15
Carton Size (cm)

58.5*33.5*34

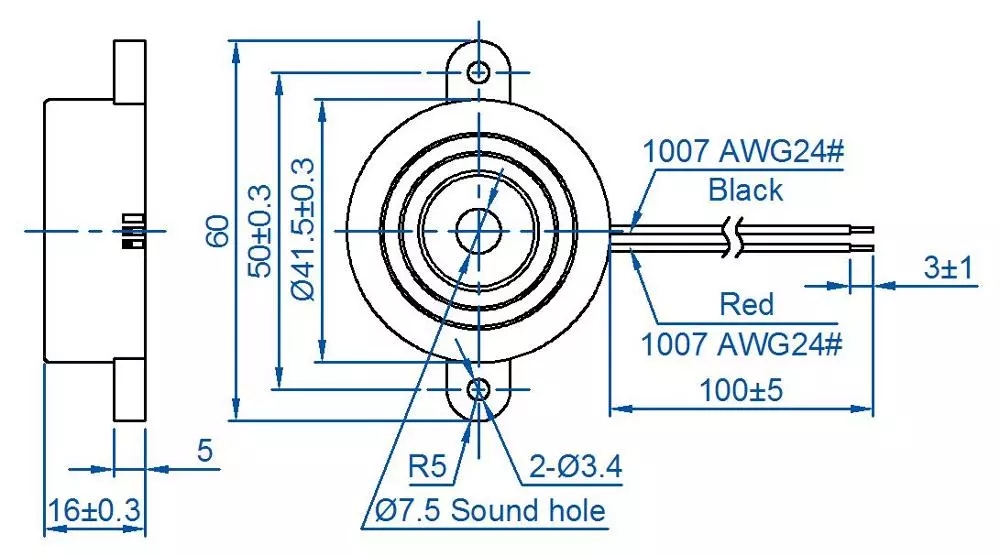

Electronic Alarm Buzzer Dimensions:

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

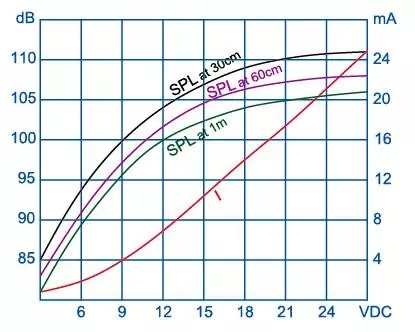

Electronic Alarm Buzzer Frequency Curve:

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

Package:

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

Classification of buzzer :
1. According to the principle of its driving mode, it can be divided into: active buzzer (including driving circuit, also called self-excited buzzer) and passive buzzer (external drive, also called other excited buzzer) Sounder);
2. According to the different construction methods, it can be divided into: electromagnetic buzzer and piezoelectric buzzer;
3. According to the different packages, it can be divided into: DIP BUZZER (Pin Buzzer) and SMD BUZZER (SMD Buzzer);
4. According to the difference of current, it can be divided into: DC buzzer and AC buzzer. Among them, DC is the most common piezoelectric buzzer, which uses piezoelectric material, that is, when the external force causes the piezoelectric material to occur Piezoelectric materials generate electrical charges during deformation. Similarly, piezoelectric materials deform when energized.
The electromagnetic buzzer mainly uses the characteristics of the conductive conductor to generate a magnetic field, and uses a fixed permanent magnet and the conductive conductor to generate magnetic force to push the tympanic membrane fixed on the coil.
Due to the different sounding principles of the two buzzers, the piezoelectric structure is simple and durable but has a single tone and color difference. It is suitable for devices such as alarms. The electromagnetic type is mostly used for voice, music and other equipment because of its good timbre.

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

Electromagnetic buzzer Workshop

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

Electronic Alarm Buzzer Certifications

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

Transport for BUZZER

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

8. Piezo Siren FAQ

1. Q: When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Q: Can i have samples?
A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
3. Q: What about minimum order quantity?
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. Q: What about delivery time?
A: We will send sample to you within 3 days.
Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.
5. Q: What about terms of payment?
A: Payment terms: T/T, west Union, Paypal and L/C etc.
6. Q: How you will send the goods to us?
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Q: Are you trading company or manufacturer ?
A: We are in China buzzer manufactory
8. Q: Do you support OEM and ODM services?
A: Yes, surely support. we can customize products according to the drawing.
9. Q: Can you provide driven circuit?
A: Yes, of course sure.
10. Q: Can you solve technical problems for us?
A: Yes, Our Technical team will try our best to support you.

9. Contact Us

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

10. Other piezo Buzzer Catalogues

DC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm BuzzerDC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm BuzzerDC 9V-24V 90dB Lead Wire Active Piezo Electronic Alarm Buzzer

TM-12095 3V 5V 9V 12V magnetic buzzer
